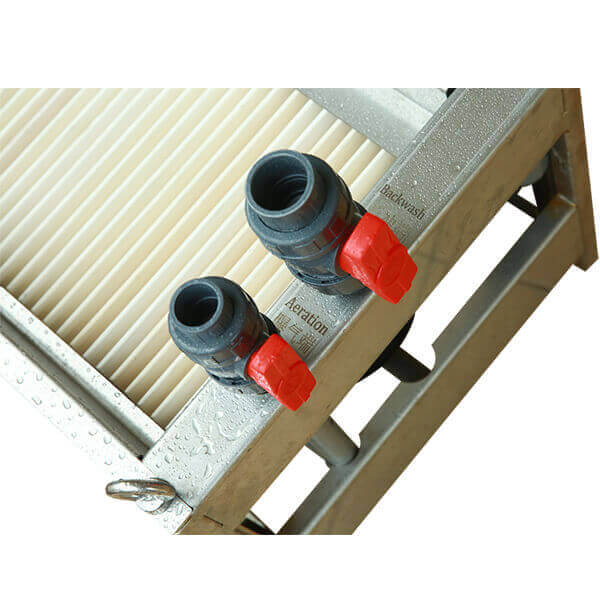

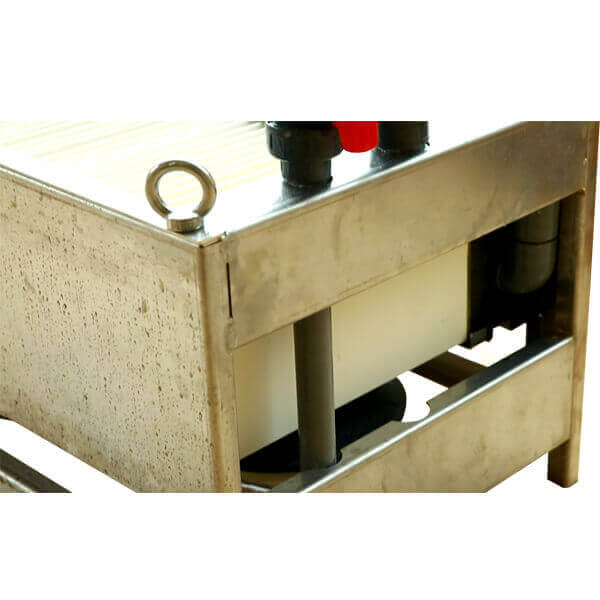

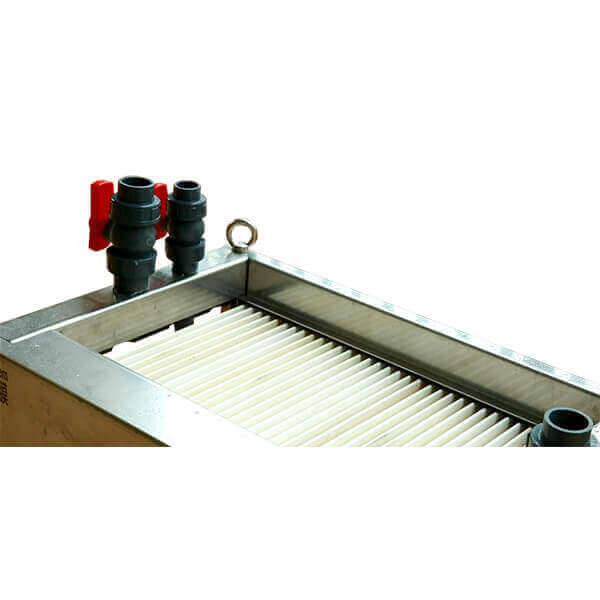

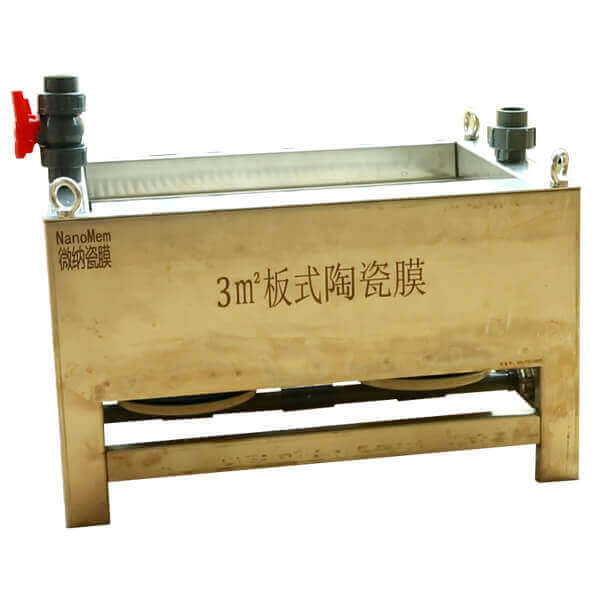

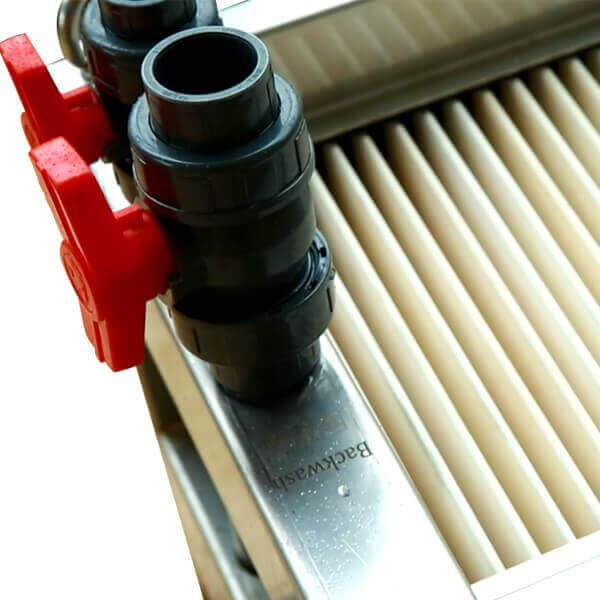

NM303 3M2 Ceramic Flat Sheet Membrane Testing Machine

• Membrane Evaluation Unit -NM303

NanoMem™ ceramic filter membrane test prototype uses plate ceramic filter membrane as the core separation unit. The prototype is mainly designed for MBR (membrane bioreactor) process requirements.
With the biochemical action of microorganism, the MBR process of wastewater treatment can be verified. The prototype is also suitable for solid-liquid separation of suspended solids above submicron.

• Characteristic:

Material superiority - corrosion resistance, high strength, heat resistance, widely used in oil,  Drainage of acid, alkali and other chemicals;

Long reliable life - compared with traditional organic membrane, inorganic ceramic membrane has a long service life;

More energy-saving operation - the membrane is not easy to be polluted and blocked, the membrane is easy to be removed and replaced, and the pressure difference across the membrane is small ;

Maintenance free operation - it can cooperate with the design of automatic backwash program design and fully automatic operation.

• Technical parameter

  Project	Parameters
  Frame material	SS304
  Pipe material	UPVC
  PH range	2〜12
  Diaphragm aperture, μ M	0.1
  Bracing material	Alpha-Al2O3
  Film material	Al2O3/TiO2
  Effective membrane area, M2	3
  Number of diaphragms	35
  Water treatment capacity 1, m3 / D	2~4
  MLSS allowed, mg / L	<10,000
  Confluence pipe diameter, mm	32
  Aeration pipe diameter, mm	25
  Recoil pressure, MPA / KGF	<0.3/ <4
  Operating temperature, ℃	≦55
  Width, mm	400
  Length, mm	600
  Height，mm	470
  Mass (dry), kg	28.5




  Note: the water production flux is the nominal flux, and the actual flux will change according to the water quality of the treated sewage. Moreover, the ceramic membrane test prototype is designed to quickly determine the operation parameters of MBR sewage treatment system. It is not suitable for long-term operation equipment.
